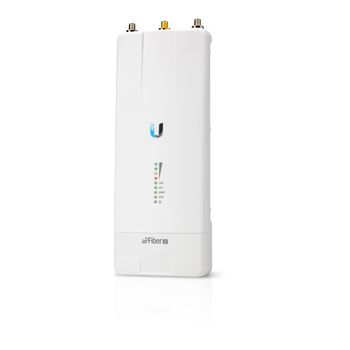

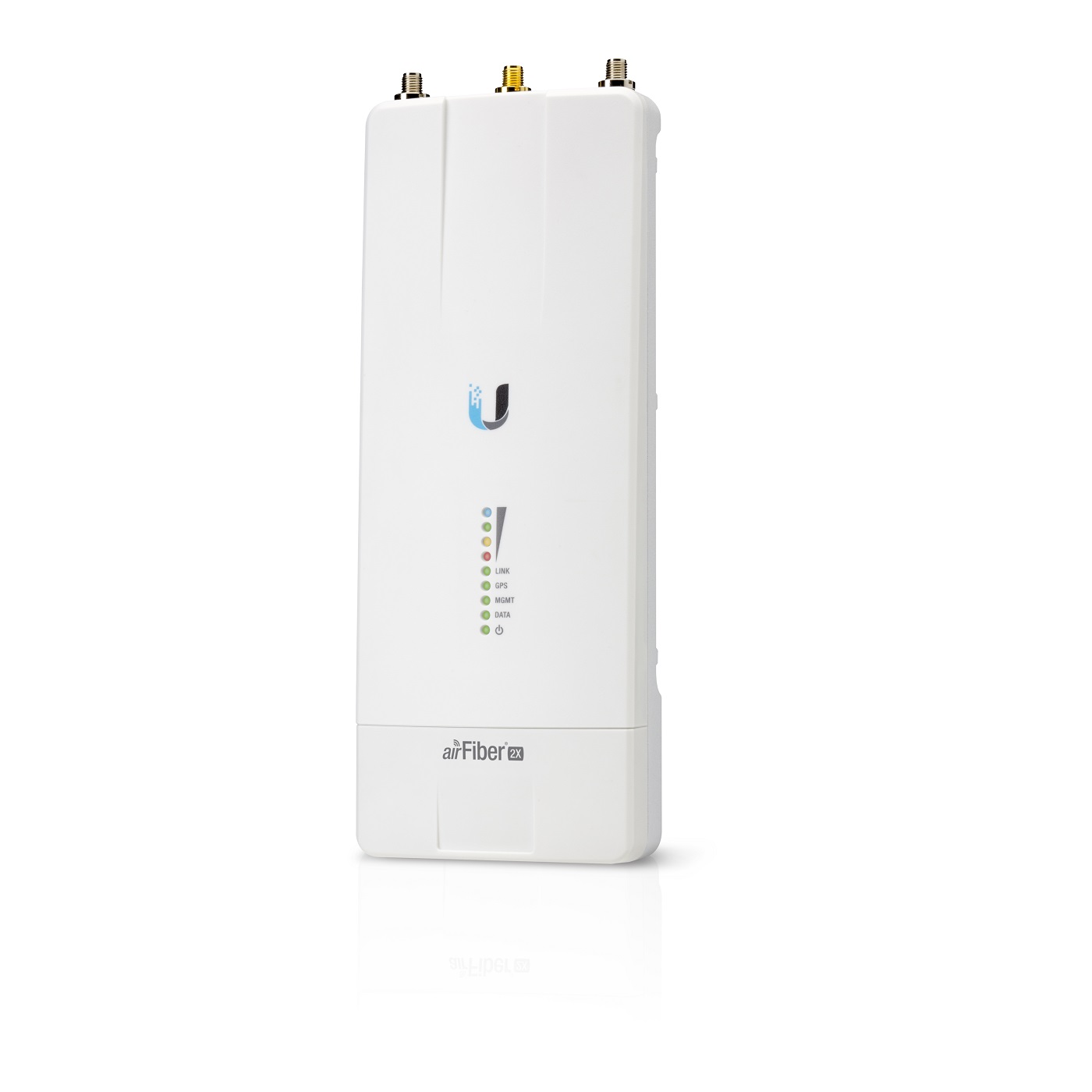

UBIQUITI AIRFIBER-2X
Product Description
airFiber, 500+ Mbps Backhaul, 2.4 GHz
airFiber: Carrier Class, Point-to-Point Gigabit Radio
Data Sheet (PDF)
The airFiber X features up to 17.1 Mbps/MHz of industry-leading spectral efficiency and uses proprietary Hybrid Division Duplexing technology to achieve the highest TDD throughput available for long-range, PtP links. The 2.4 GHz frequency band is free to use, worldwide; and with its proprietary protocol, the AF-2X increases both range and delivered throughput in this popular band.
Product Details
• Operating Frequency: 2400-2500 MHz
• Dimensions: 8.9 x 3.2 x 1.9 (224 x 82 x 48 mm)
• Weight: 0.77 lb (0.35 kg)
• Max. Power Consumption: 17W
• Power Supply: 24V 1A PoE GigE Adapter (Included)
• Power Method: Passive Power over Ethernet (42-58VDC)
• Operating Temperature: -40 to 131° F (-40 to 55°C)
• Rocket Mount Compatible, GPS Pole Mount (Included)
Additional Information
• 500+ Mbps, aggregate throughput
• 120+ mi (200+ km) range
• Worldwide License-Free 2.4 GHz frequency
• Intuitive airFiber Configuration Interface
• US power cord, US/FCC channel/frequency plan only
***Ubiquiti pricing is per SIDE. Requires 2 units for a single link.***
