L-COM AL6-NMNFBW-9
Product Description
LIGHTNING PROTECTOR, N-MALE to N-FEMALE BULKHEAD 0-6 GHZ 90V
Data Sheet (PDF)

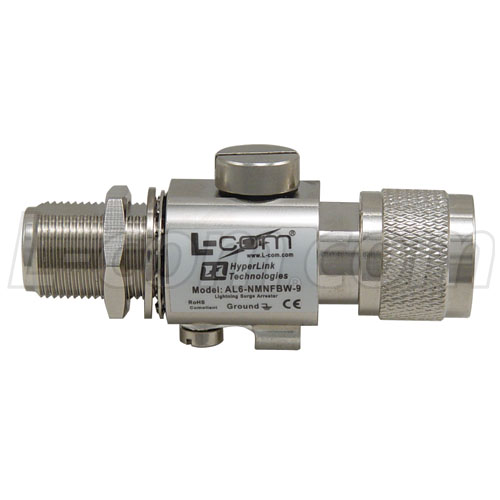

The AL6-NMNFBW-9 is a very high-performance gas discharge tube suppressor featuring wide-band operation up to 6 GHz. The unit features a bulkhead N-Female connector with a rubber "O"-ring seal for mounting through an enclosure wall or using the included stainless steel mounting bracket.
Due to its low cost and superior RF performance, this unit is ideal for IEEE 802.11b and 802.11g Wireless LAN applications, as well as ISM, MMDS, Cellular, PCS and WiMAX applications. Since this protector will pass DC, it is suitable for applications where DC is carried through the coax cable, such as remote amplifiers and LNAs.
Both connector ports of this unit are equally protected. This provides protection no matter which way it is installed. Either port can face the antenna and either port can face the equipment.
The unit's replaceable gas tube element, multi-strike capability and fast response time make it suitable for a wide range of applications. A ground lug and terminal is provided directly on the lightning protector housing which provides superior grounding.
Features Include:
• Reliable Performance from DC ~ 6 GHz
• Bi-Directional Protection / Protector will pass DC
• High Quality Construction, Includes Mounting Bracket
• Easily Replaced Gas Tube Element
• Multi-Strike Capability
