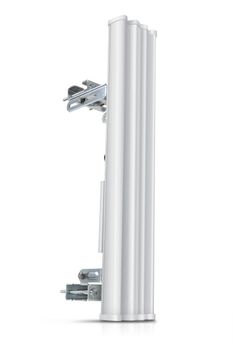

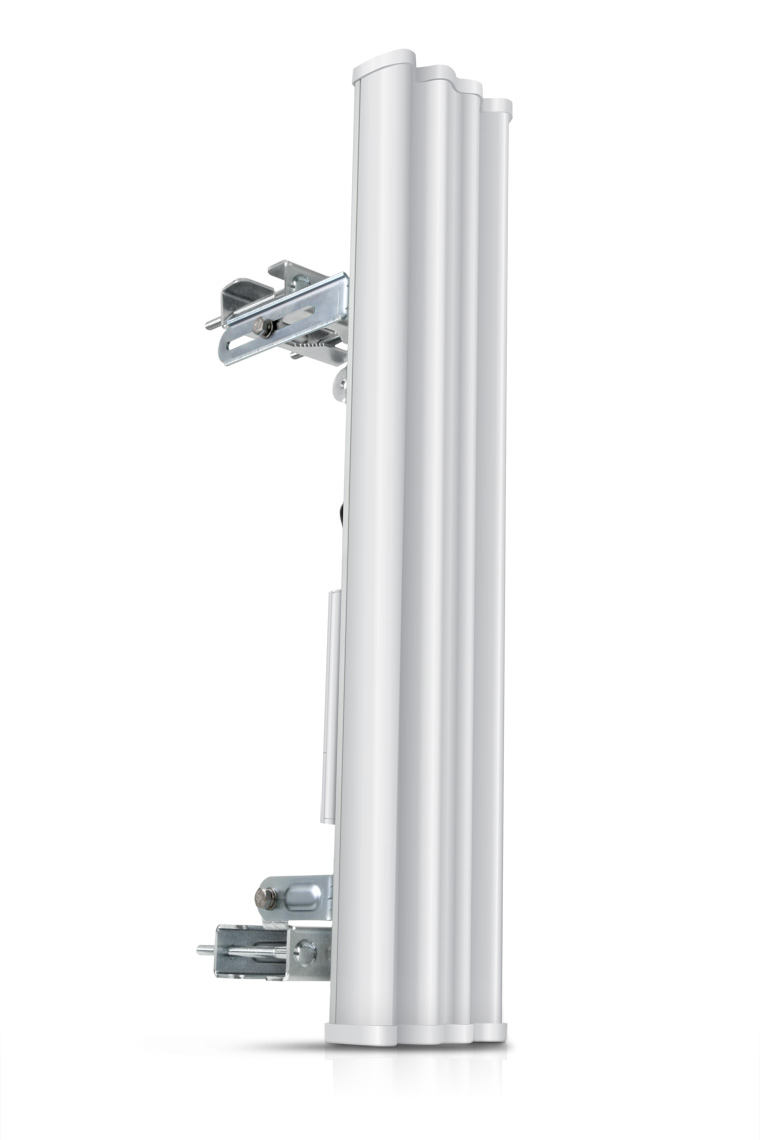

UBIQUITI AM-5G20
Product Description
airMAX Sector 5 GHz, 90º, 20 dBi Antenna
Data Sheet (PDF)
airMAX BaseStation 5GHz Sector
World Class Antenna Designs
Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful airMAX 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.
Rocket M Seamlessly Integrates with airMAX BaseStation Sectors
Rocket M and airMAX BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on airMAX BaseStation Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.
• Frequency Range: 5.15-5.85 GHz
• Gain: 19.4-20.3dBi
• Polarization: Dual Linear
• Cross-pol Isolation: 28dB min
• Max VSWR: 1.5:1
• Hpol Beamwidth (6dB): 91 deg.
• Vpol Beamwidth (6dB): 85 deg.
• Elevation Beamwidth: 4 deg.
• Electrical Downtilt: 2 deg.
• ETSI Specification: EN 302 326 DN2
• Dimensions: 27.6 x 5.7 x 3.1in (700 x 145 x 79mm)
• Weight: 13.0lbs (5.9kg)
• Windloading: 160 mph
