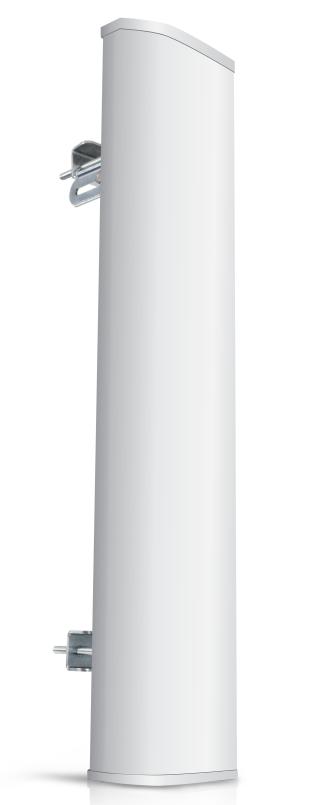

UBIQUITI AM-9M13
Product Description
900MHZ SECTOR ANTENNA, DUAL-POL 120-DEGREE 13DBI
Data Sheet (PDF)
airMAX BaseStation 900MHz Sector
World Class Antenna Designs
Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M9 to create a powerful airMAX 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.
Rocket M Seamlessly Integrates with airMAX BaseStation Sectors
Rocket M and airMAX BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on airMAX BaseStation Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.
• Frequency Range: 902-928 MHz
• Gain: 13.2-13.8dBi
• Polarization: Dual Linear
• Cross-pol Isolation: 30dB min
• Max VSWR: 1.5:1
• Hpol Beamwidth (6dB): 109 deg.
• Vpol Beamwidth (6dB): 120 deg.
• Elevation Beamwidth: 15 deg.
• Electrical Downtilt: N/A
• ETSI Specification: N/A
• Dimensions: 50.8 x 11.4 x 5.3in (1290 x 290 x 134mm)
• Weight: 27.6lbs (12.5kg)
• Windloading: 160 mph
