UBIQUITI AMO-2G13
Product Description
2.4GHZ OUTDOOR OMNI-DIRECTIONAL DUAL-POL 13DBI
Next Generation 2x2 Dual Polarity MIMO Antenna Design
Data Sheet (PDF)

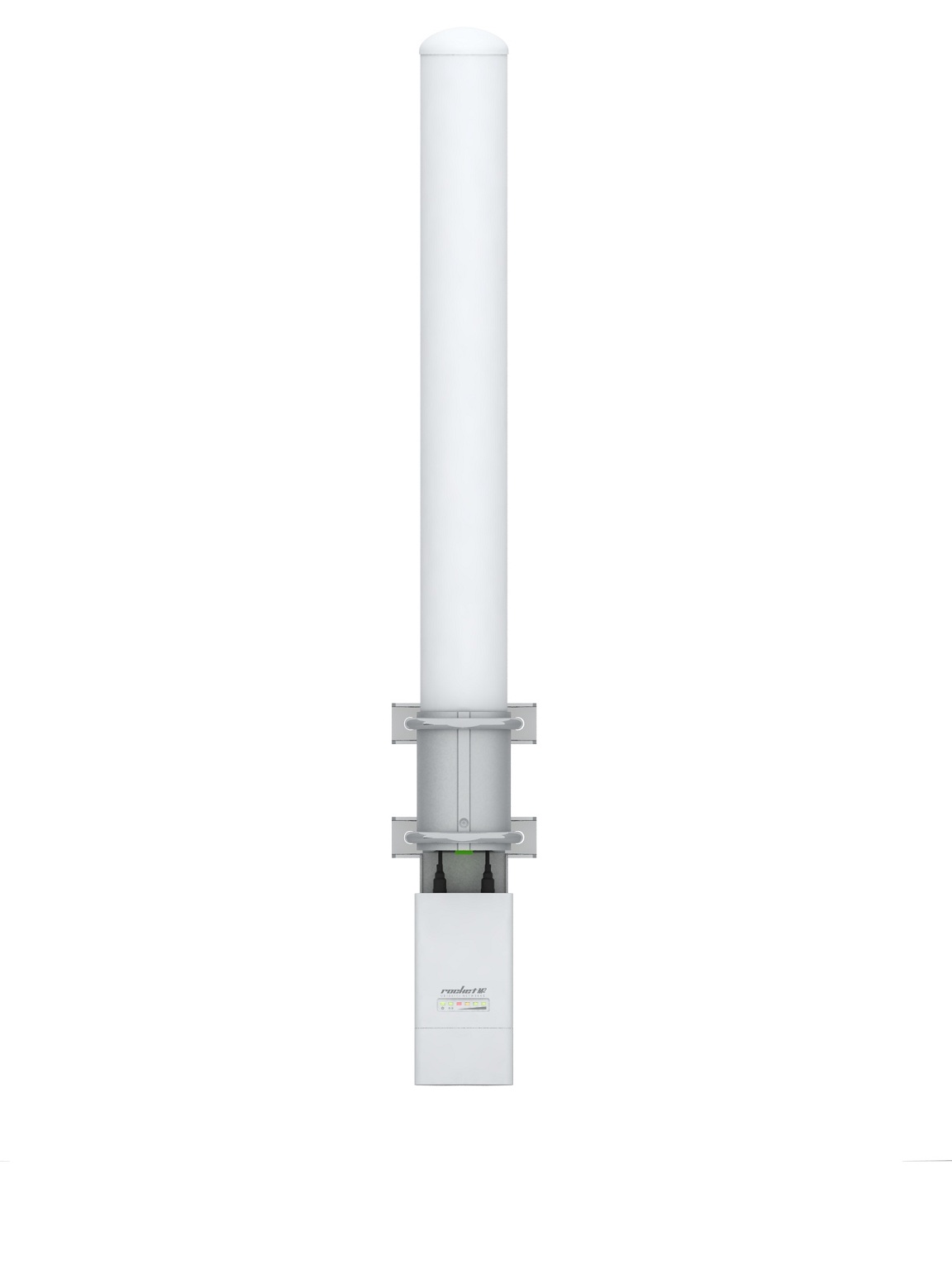

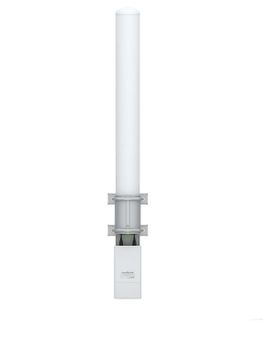

airMAX Omni is a Carrier Class omnidirectional antenna that was designed to seamlessly integrate with Rocket M radios (sold separately). Rocket M combines the brains in one robust unit; pair Rocket M with airMAX Omni to create powerful 360 degree omnidirectional coverage. This seamless integration gives network architects unparalleled flexibility and convenience.
Utilize airMAX Technology
airMAX Technology provides performance improvements in latency, throughput, & scalability compared to other outdoor systems in its class.
Seamless Rocket Integration
airMAX Omni has an integrated mount that lets you securely snap Rocket M (sold separately) into place.
2x2 MIMO
All versions of airMAX Omni feature 2x2 MIMO to help it achieve Carrier Class speed and performance.
Frequency Range: 2.35-2.55GHz
Gain: 13dBi
Polarization: Dual Linear
Cross-pol Isolation: 25dB min
Max VSWR: 1.7:1
Elevation Beamwidth: 7 deg.
Electrical Downtilt: 2 deg.
Dimensions: 54.6x8.5x4.8in (1386x217x123mm) diameter
Weight: 5.3lbs (2.4kg)
Universal pole mount, Rocket M bracket and weatherproof RF jumpers included
