L-COM HG2424EG-NF
Product Description
2.4-2.5GHZ GRID DISH 24DBI
Data Sheet (PDF)

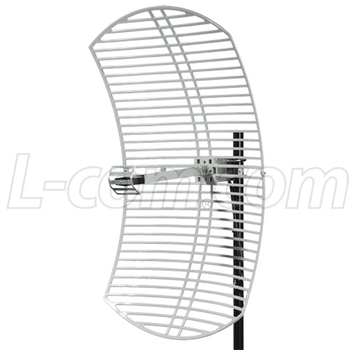

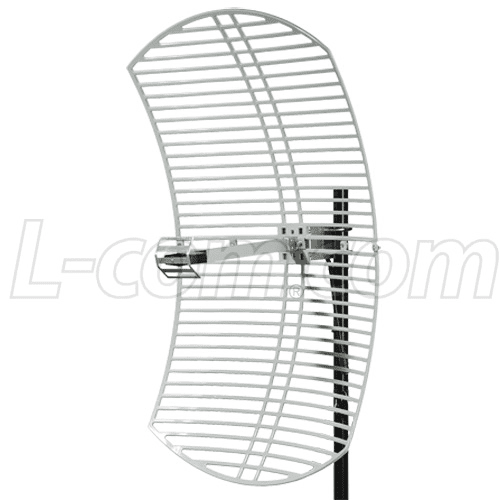

The HyperLink HG2424EG High-Performance Reflector Grid Wi-Fi Antenna provides 24 dBi gain with an 8 degree beam-width for long-range directional applications. Applications include point to point systems, point to multi-point and wireless bridges in the 2.4GHz ISM band as well as IEEE 802.11b/g/n wireless LAN systems. It can be installed for either vertical or horizontal polarization.
This 24dB grid antenna's construction features a die cast aluminum reflector grid for good strength and ease of installation. This antenna's 2-piece reflector grid is simple to assemble and significantly reduces shipping costs. The grid surface is UV powder coated for durability and aesthetics. The open-frame grid design minimizes wind loading. The HG2424EG antenna is supplied with a 60 degree tilt and swivel mast mount kit. This allows installation at various degrees of incline for easy alignment. It can be adjusted up or down from 0° to 60°.
Features Include:
• Die-Cast aluminum construction
• UV stable light gray powder coat finish
• 8° beam-width & 12 inch coax lead
• Easy to assemble
• All weather operation
Applications:
2.4 GHz ISM Band
• IEEE 802.11b/g/n Wireless LAN Applications
• Wi-Fi Systems & Long-range Directional Applications
• Point to Point Systems & Point to Multi-point Systems
• Wireless Bridges, Backhaul Applications & Wireless Video Systems
