MTI WIRELESS EDGE MT-243003/NH
Product Description

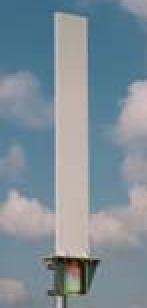

900MHZ OUTDOOR OMNI-DIRECTIONAL H-POL 11.5DBI
Data Sheet (PDF)
The 900 MHz omnidirectional antennas from MTI Wireless Edge offer high gain for reliable long-range wireless data communication at an economical price. These antennas are completely waterproof and will provide years of reliable error-free operation.
Specifications:
• Frequency: 902-928MHz
• Gain: 11.5dBi
• Polarization: Linear Horizontal
• Horizontal Beamwidth: 360 degree
• Vertical Beamwidth: 9.5 degree
• Connector: N-type female (50 ohm)
• Operating Temperature: -55°C to +71°C
• Dimensions: 76.4 x 11.0 x 2.2in (1940 x 280 x 55mm)
Antenna mounting kit included
Data Sheet (PDF)
The 900 MHz omnidirectional antennas from MTI Wireless Edge offer high gain for reliable long-range wireless data communication at an economical price. These antennas are completely waterproof and will provide years of reliable error-free operation.
Specifications:
• Frequency: 902-928MHz
• Gain: 11.5dBi
• Polarization: Linear Horizontal
• Horizontal Beamwidth: 360 degree
• Vertical Beamwidth: 9.5 degree
• Connector: N-type female (50 ohm)
• Operating Temperature: -55°C to +71°C
• Dimensions: 76.4 x 11.0 x 2.2in (1940 x 280 x 55mm)
Antenna mounting kit included
