MIKROTIK RB/433 ROUTERBOARD, 3 LAN / 3 MINI-PCI 300MHZ 64MB L4

RB433 is end of life (EOL). Mikrotik recommends RBM33G for functional replacement.


Data Sheet (PDF)

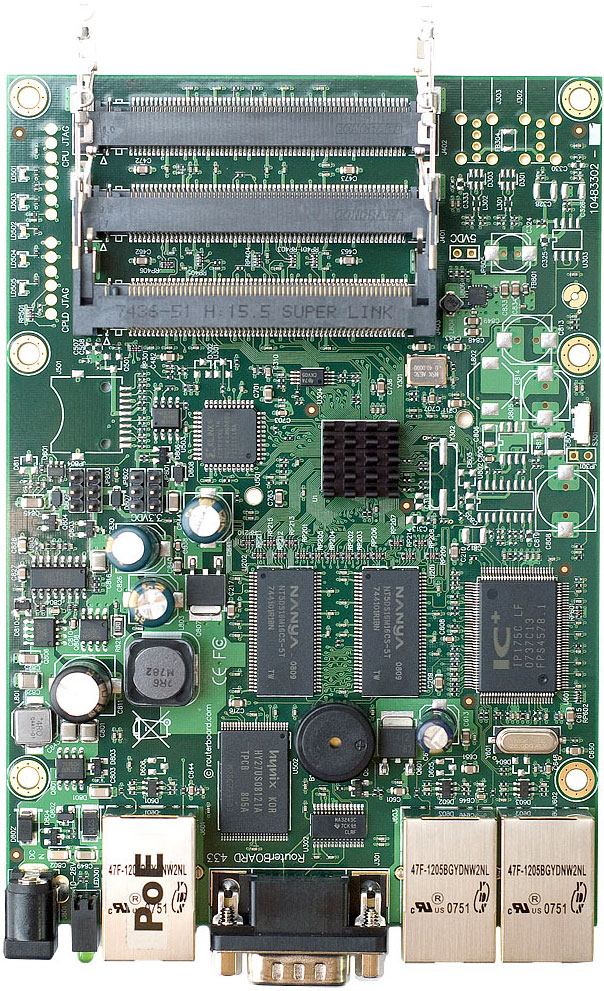

The rb433 is a high speed AP/router. Much faster than its predecessors the rb433 is replacing not only the low priced rb133, but also the powerful rb333. The heart of this device is the new Atheros CPU which makes this tiny device a quick one. Tests show that this device is faster than any other low cost product by mikrotik, making the rb400 series fit right behind rb600 and rb1000. rb433 includes RouterOS - the operating system, which will turn this powerful system into a highly sophisticated router/firewall or bandwidth manager. One small device - with all the power of RouterOS. At a very special price.

• CPU Atheros AR7130 300MHz
• Memory 64MB DDR SDRAM onboard memory
• Data storage 64MB onboard NAND memory chip and microSD
• Three 10/100 Mbit/s Ethernet ports with Auto-MDI/X
• Three MiniPCI Type IIIA/IIIB slots
• Dimensions 10.5 cm x 15 cm, 137 grams
• Power consumption ~3W without extension cards, maximum – 25 W, 16W output to cards
• Operating System MikroTik RouterOS, Level4 license
• Dimensions: 4.13 x 5.9in (10.5 x 15cm)
• RB/433
