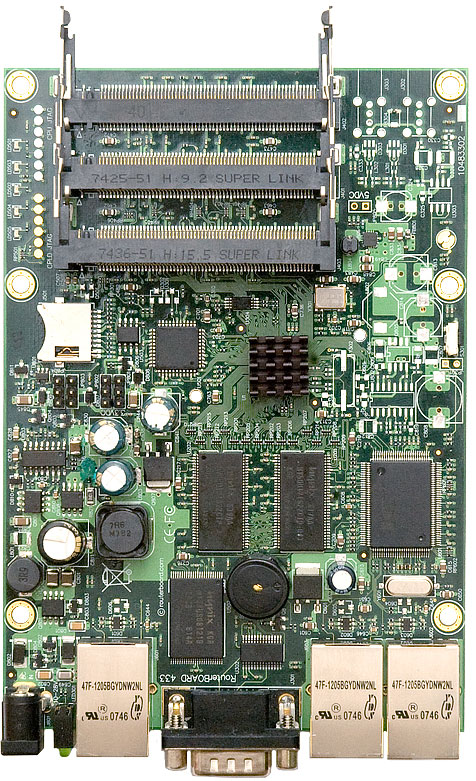

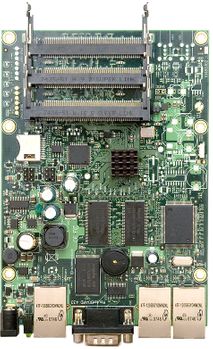

MIKROTIK RB/433AH ROUTERBOARD, 3 LAN / 3 MINI-PCI 680MHZ 128MB L5
Product Description
Data Sheet (PDF)
The RB433AH is a more powerful version of the standard RB433. The 128MB DDR will be capable of supporting new RouterOS features coming. The microSD slot supports an additional memory card that can be used for a Dude database and other features to be announced in during Spring ‘08. The 680MHz Atheros MIPs 24K CPU, that can be overclocked to 800MHz, with a 64KB/32KB instruction/data cache is probably the fastest CPU used in low cost wireless access points. The three Ethernets and mpci slots give you ample data interfaces to put the big CPU power to work. The RB433 and RB433AH replace the RB133 and RB333.
• CPU Atheros AR7161 680MHz network processor (Tested at 800MHz)
• Memory 128MB DDR SDRAM onboard memory
• Data storage 64MB onboard NAND memory chip and microSD
• Three 10/100 Mbit/s Ethernet ports with Auto-MDI/X
• Three MiniPCI Type IIIA/IIIB slots
• Dimensions 10.5 cm x 15 cm, 137 grams
• Power consumption ~3W without extension cards, maximum – 25 W, 16W output to cards
• Operating System MikroTik RouterOS, Level5 license
• Dimensions: 4.13 x 5.9in (10.5 x 15cm)
• RB/433AH
