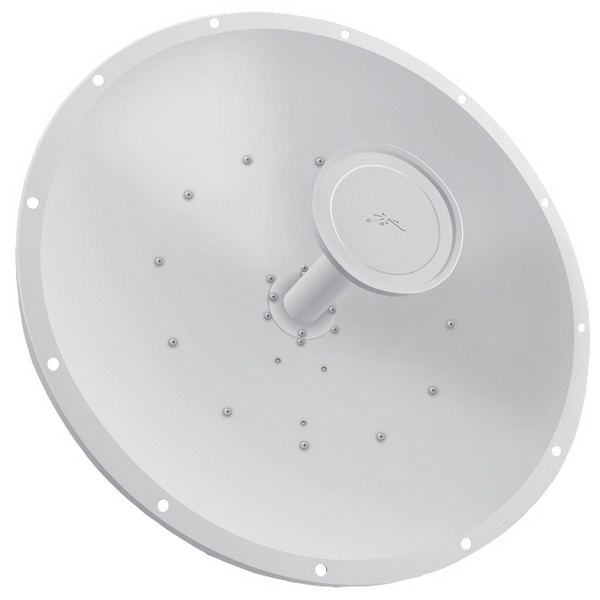

UBIQUITI RD-3G26
Product Description
3 GHz airMAX 26 dBi RocketDish Antenna
Data Sheet (PDF)
RocketDish 3G-26: 3GHz airMAX 2x2 PtP Bridge Dish Antenna
New Technology OMT Design
Carrier Class Performance. Breakthrough Price Points. Instantly pair with Rocket M365 to create powerful 2x2 MIMO PtP Bridging applications. Full mating bracket and weatherproof RF jumpers included.
Rocket M Seamlessly Integrates with Rocket Dish Antenna
Rocket M and airMAX BaseStation/Rocket antennas have been designed to seamlessly work together. Installing Rocket M on airMAX BaseStation/Rocket antennas requires no special tools, you simply snap it into place with the mount provided with the antennas.
• Frequency Range: 3.3-3.8 GHz
• Gain: 24.9-26.0dBi
• Polarization: Dual Linear
• Cross-pol Isolation: 35dB min
• Max VSWR: 1.4:1
• Hpol Beamwidth (6dB): 7 deg.
• Vpol Beamwidth (6dB): 7 deg.
• F/B Ratio: -34dB
• ETSI Specification: EN 302 326 DN2
• Dimensions: 25.5in (650mm) diameter
• Weight: 21.6lbs (9.8kg)
• Wind Survivability: 125 mph
