UBIQUITI RD-5G30-LW
Product Description

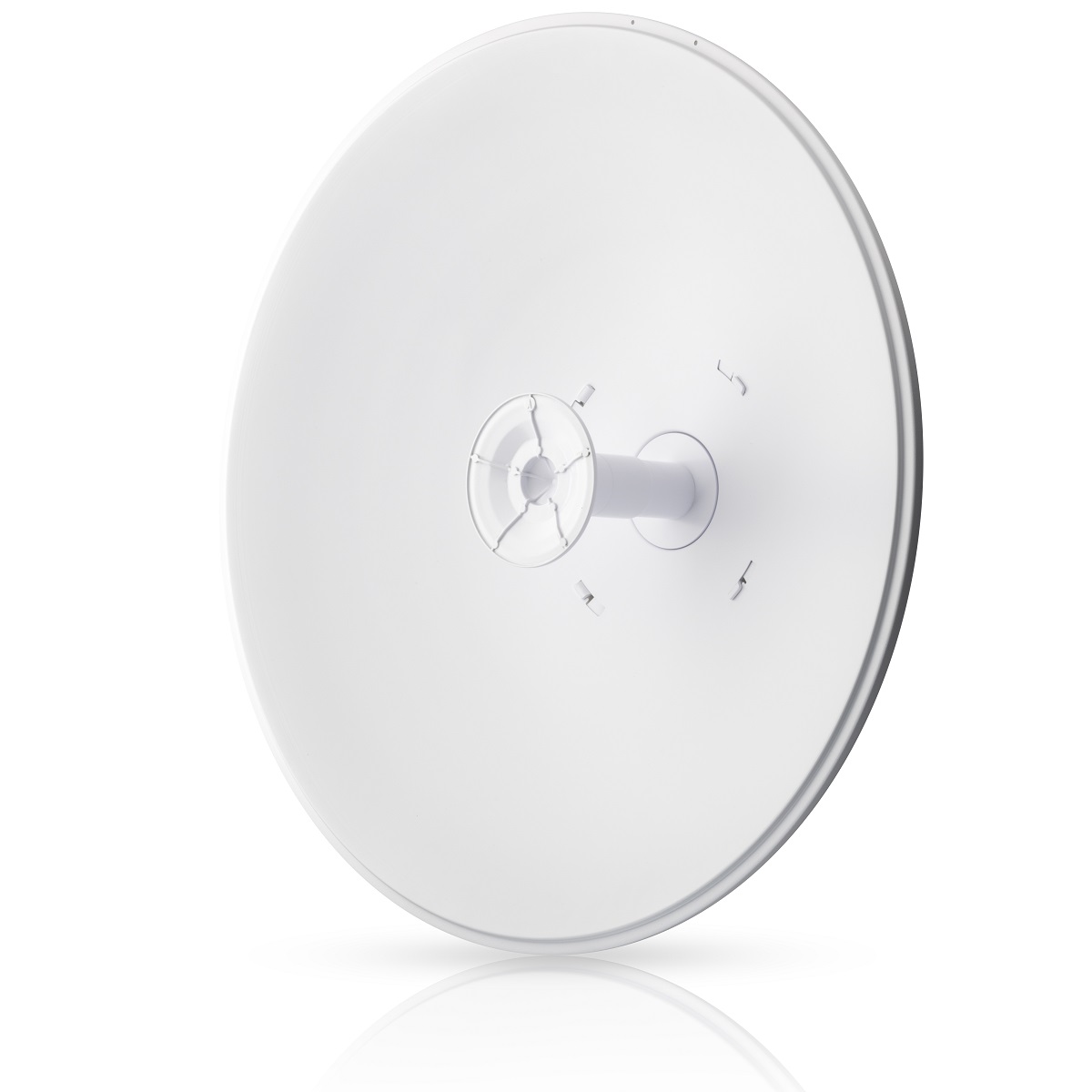

5.1-5.9GHZ PARABOLIC DISH ANTENNA 30DBI DUAL-POL
Data Sheet (PDF)
RocketDish 5G30-LW: 5GHz airMAX 2x2 PtP Bridge Dish Antenna
New Technology OMT Design
Carrier Class Performance. Breakthrough Price Points. Instantly pair with Rocket M5 to create powerful 2x2 MIMO PtP Bridging applications. Rocket mount and weatherproof RF jumpers included.
The RD-5G30-LW features the same gain as the RD-5G30 and adds the following advantages:
• Lightweight yet robust components lessen the load.
• The extended depth of the dish reflector rejects noise interference in co-location deployments.
• The design of the mounting bracket allows for ease of installation on a pole or tower.
• Frequency Range: 5.10-5.90 GHz
• Gain: 30dBi
• Polarization: Dual Linear
• Cross-pol Isolation: 35dB min
• Max VSWR: 1.6:1
• Hpol Beamwidth (3dB): 5.8 deg.
• Vpol Beamwidth (3dB): 5.8 deg.
• F/B Ratio: -30dB
• ETSI Specification: EN 302 326 DN2
• Dimensions: 25.5in (650mm) diameter
• Weight: 16.3lbs (7.4kg)
• Wind Survivability: 125 mph
