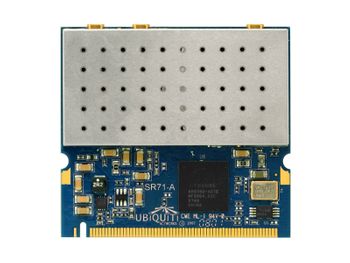

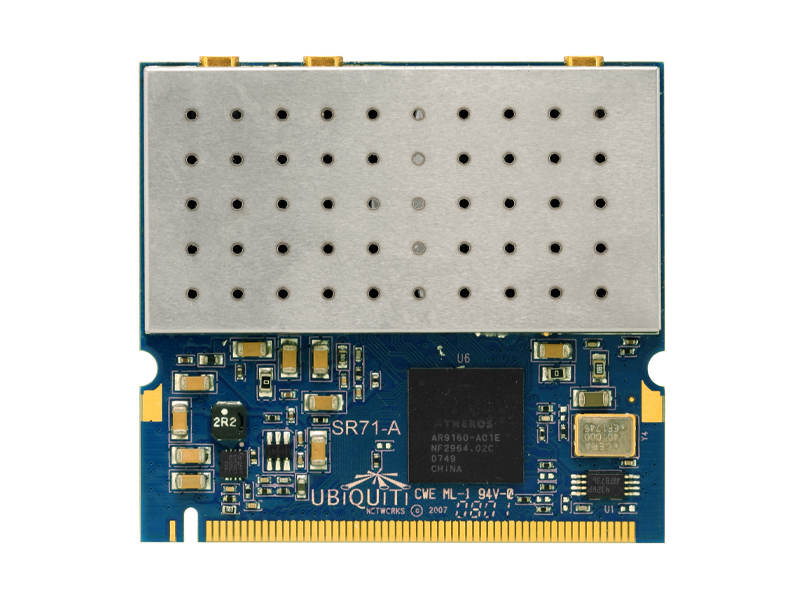

UBIQUITI SUPERRANGE71-A

SR71-A is end of life (EOL) with no direct replacement.


Data Sheet (PDF)

Click here to view SR71A dimensions

The Next-Generation of Power and Speed for Outdoor Applications. Link Multi-km Distances at 100Mbps+ TCP/IP DataRates.

• Chipset: Atheros AR9160 with DFS SUPPORT
• Radio Operation: IEEE 802.11a/b/g/n
• Interface: 32-bit mini-PCI Type IIIA
• Operation Voltage: 3.3VDC
• Antenna Ports: (3) MMCX for 3x3 MIMO Operation
• Temperature Range: -20C to +70C (extended temp version up to +95C)
• Security: 802.11i with AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP
• Data Rates: up to 300Mbps
• TX Channel Width Support: 20MHz / 40MHz
• RoHS Compliance: YES
• Hi-Power Frequency Operation: 2412-2462MHz(FCC) , 5475-5725MHz (CE), 5745-5825MHz (FCC)
• Avg. TX Power: 24dBm, +/-2dB
• Max Avg. Current Consumption: 1.25A, +/-100mA
• RoHS Compliance: YES
• Indoor Range (Antenna Dependent): over 150m
• Outdoor Range (Antenna Dependent): over 50km
• Operating System Support: Linux
